The Allen Bradley 1756-OB16I has undergone rigorous isolation testing and the channel is intact. It is designed to provide additional safety guarantees for your control system in complex industrial environments. It comes with a CE-certified isolated output module. As a supplier based in China, Tongtu is glad to have customers come to our warehouse to select the models..

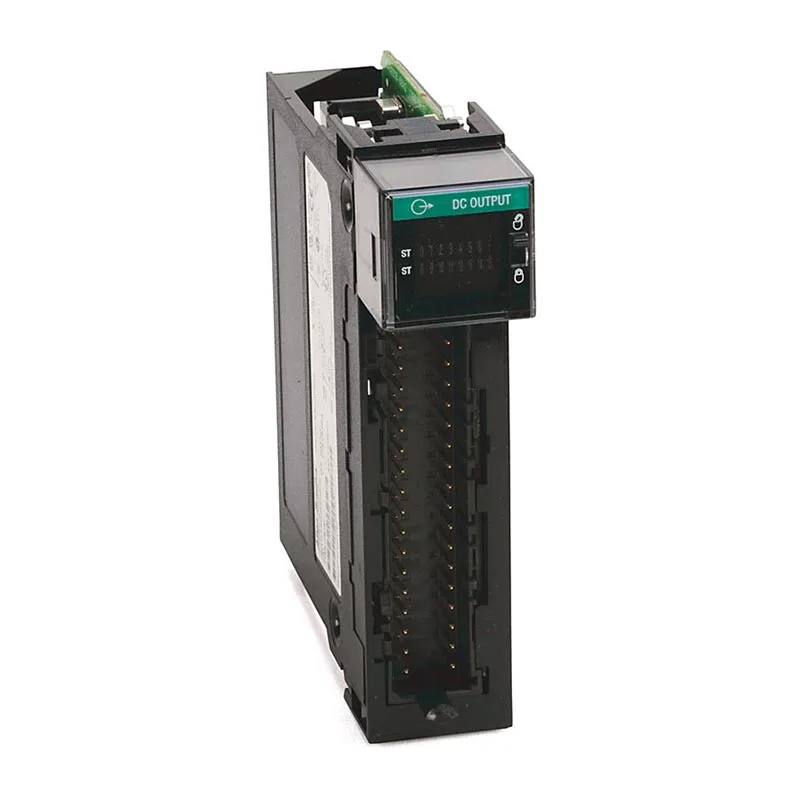

When you hold this Allen Bradley 1756-OB16I, you will find that it is a standard ControlLogix module. Its appearance continues the classic black engineering plastic casing of Rockwell. The most prominent feature is the wiring terminals and connectors on its front panel, as well as the neatly arranged status indicator lights. Please note that the model ends with an "I", which indicates that it is isolated. This means that the 16 green indicator lights on the front of it correspond to each individual output channel. Once there is a signal output, the lights will light up, making on-site debugging very intuitive. Its plug-and-play wiring terminals are very user-friendly. You don't need to remove the entire wire; just pull out the terminal block to replace the module. The overall features are very professional, with solid workmanship. It looks like a "tough guy" that can work in harsh industrial environments for a long time.
This Allen Bradley 1756-OB16I module is very easy to maintain. Since it is mainly an electronic circuit, dust and moisture protection is the top priority. During routine inspections, check if the terminal connections are loose and whether the backplane slots are securely fastened. If you find that a certain point is not outputting, first check if there is a short circuit in the external load, because the module has built-in protection and most of the time it is an external line problem. As long as the environmental temperature is suitable and the voltage is stable, it rarely has problems and can work quietly for many years.
The core structure of this Allen Bradley 1756-OB16I adopts the optical coupling isolation technology. In simple terms, the circuit board inside completely isolates the control side (which is inside the PLC) from the field side (which is the external equipment) electrically. The two sides are not connected to the same ground, and the signals are transmitted through light. This design is very smart. Even if there is a high-voltage surge or ground loop interference on the field side, it will not reach the backplane bus of the PLC, effectively protecting the core processor. It integrates 16 independent solid-state output switches internally, and each channel has its own independent isolation path. This is much more sophisticated than those modules where each group shares a common point. This structural design not only ensures the accuracy of signal transmission but also significantly improves the safety and anti-interference ability of the system.
