In China, Yueyang Tongtu E-commerce Co., Ltd. is committed to ensuring the quality of products and the reliability of after-sales services. As a high-performance displacement preamplifier component, Bently Nevada 330780-50-00 is widely used in industrial automation, mechanical equipment control, and gas turbine speed monitoring, among other fields. Its high precision, high stability, and excellent anti-interference ability make it the preferred product in many industrial application areas.
1. The Bently Nevada 330780-50-00 adopts advanced sensing technology to ensure excellent measurement accuracy and stability.
2. The preamplifier component employs advanced anti-radio interference technology and a sturdy, durable design, which can maintain stable performance even in complex electromagnetic environments.
3. It is easy to install and maintain, supporting compact rail installation and traditional panel installation. Users can choose and install it according to their actual needs.
The Bently Nevada 330780-50-00 is designed for precise measurement of displacement, vibration and other parameters in industrial automated systems. By providing timely and accurate alarms and feedback, it can accurately measure key mechanical parameters such as axial (thrust) displacement, the displacement or drop of the piston rod in reciprocating compressors, or the differential expansion of steam turbines. It is a high-performance preamplifier.

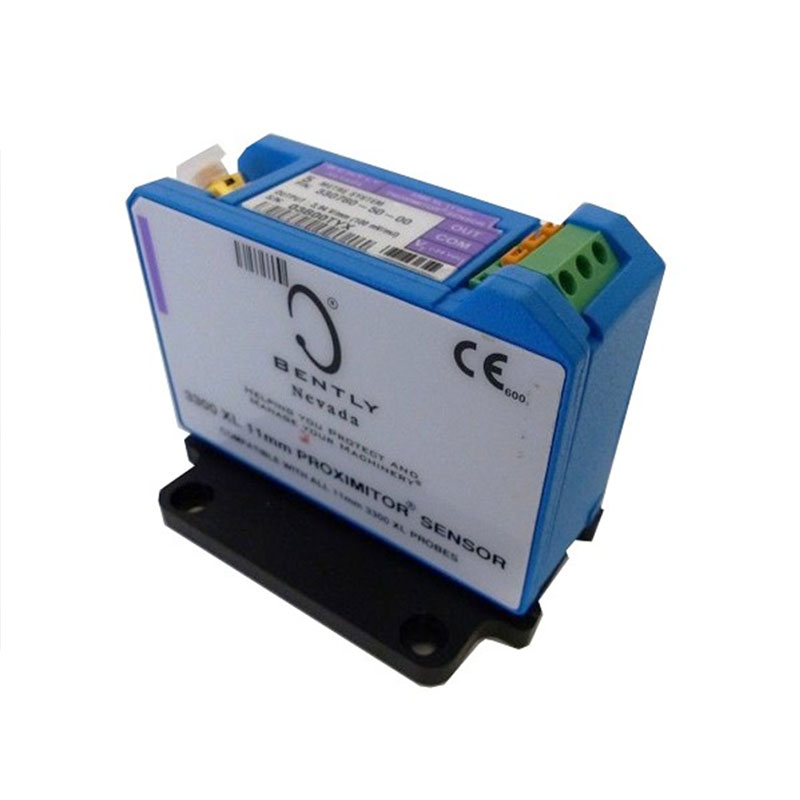

Product name: Bently Nevada 330780-50-00
System length: 5.0 meters (16.4 feet), panel mounted
Recommended minimum target size: 30.5 mm (1.2 inches) diameter (flat target)
Power supply: -24Vdc
Load: 10KΩ
Target surface: 31mm (1.2in) diameter
Probe gap: 2.5mm (100mils)
Sensitivity: 3300 XL 11mm eddy current sensor system can output 3.94 V/m (100mV/mil)
Working medium: air, oil, water, etc.
Working pressure: The maximum working pressure of the probe is 12Mpa
Frequency response: 0~10kHz
Amplitude-frequency characteristics: 0~1kHz attenuation is less than 1%, 10kHz attenuation is less than 5%
Phase-frequency characteristics: 0~1kHz phase difference is less than -10°, 10kHz phase difference is less than -100°
