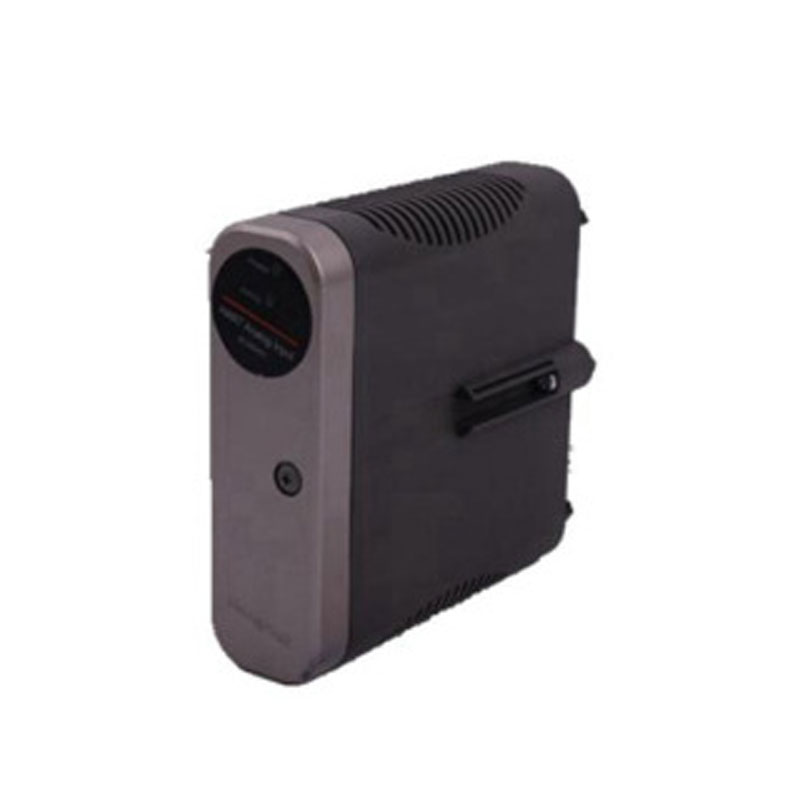

HONEYWELL 8C-PAIN01

HONEYWELL 8C-PAIN01 is a type of analog input terminal board. You can purchase it from the same store. We guarantee the authenticity of the original price. It can safely receive signals from on-site instruments and can be used in conjunction with PMIO or C300 I/O modules to ensure the authenticity of the data. It is a product that complies with CE certification, verified by channel connection and disconnection tests as well as terminal connection and tightening verification.

Application scenario

For any application that uses Honeywell C300 or PMIO systems and requires the collection of analog signals with precise data requirements, this Honeywell 8C-PAIN01 is the standard configuration. The most common application is in the temperature monitoring of cracking furnaces in the petrochemical industry. Cracking furnaces typically have hundreds of temperature measurement points, and all of these measurement points need to be connected to this circuit board. Additionally, it is also used in the power industry to monitor the bearing temperatures of steam turbines, which are critical parameters closely related to equipment safety. In the pharmaceutical industry, it is used to control the temperature of reaction tanks, with extremely high precision requirements.

Technical Characteristics and Advantages

The Honeywell 8C-PAIN01 analog input card realizes a revolutionary upgrade of traditional DCS hardware. It achieves high-density integration of 16 channels on a compact circuit board, and adopts full opto-isolation technology between channels and ground to build a secure defense line. It has abandoned the old-fashioned hardware jumper configuration and supports independent configuration of each channel through software to flexibly receive 4-20mA or 1-5V signals. Its built-in high-resolution Sigma-Delta A/D converter enhances the measurement accuracy to ±0.1% or higher, perfectly meeting the demanding process requirements of precision chemical and oil refining industries. It is a module that completely eliminates manual operation. The internal non-volatile memory stores electronic identifiers such as type, serial number, and calibration date, and can be automatically recognized by the system after being inserted into the rack.

Quality and After-sales Service

Due to the high unit price of Honeywell 8C-PAIN01, we offer the highest standard of 100% original factory components. The most crucial aspect is that the firmware version must not be downgraded. This is because the hardware version (such as Rev A, Rev B) of this module is extremely strict in its requirements for the internal burned-in firmware version. If the storage chips are randomly replaced, resulting in a firmware version lower than the minimum compatibility requirement of the rack controller, and then inserted back into the rack, it will inevitably cause a serious accident such as the entire I/O baseboard losing network connection or generating error messages. If you encounter any technical issues, please consult us promptly. We have professional technicians to troubleshoot them.
