In China, Yueyang Tongtu has developed a motion control manager with Schneider LXM23DU20M3X servo drive. This is a long-standing product from the Schneider family, specifically designed to manage motors that require precise positioning. It is a stable and widely used drive, enabling your equipment to quickly resume power supply and completely eliminating production downtime caused by servo failures.
This Schneider LXM23DU20M3X servo drive integrates a rectifier unit, an inverter module and a control circuit board. Its heat sink is designed very stylishly and protrudes directly from the body side, which can quickly disperse the internal heat. The terminal blocks of it adopt spring clamping or screw pressing methods, with extremely low contact resistance and less prone to overheating. The internal circuit board is coated with a thick insulating layer, which can prevent dust or moisture from entering and causing trouble in the field. Its structure is very compact, with an appropriate width. When installed in an electrical cabinet, it won't occupy too much lateral space. Two units installed side by side are also sufficient. The structural design is extremely rigorous.
The LXM23DU20M3X has an extremely wide range of applications. The most common applications include the feed shafts of CNC machines, the film feeding mechanisms of packaging machinery, and the winding systems of textile machinery. In any situation where precise transmission, stable operation and rapid response are required.

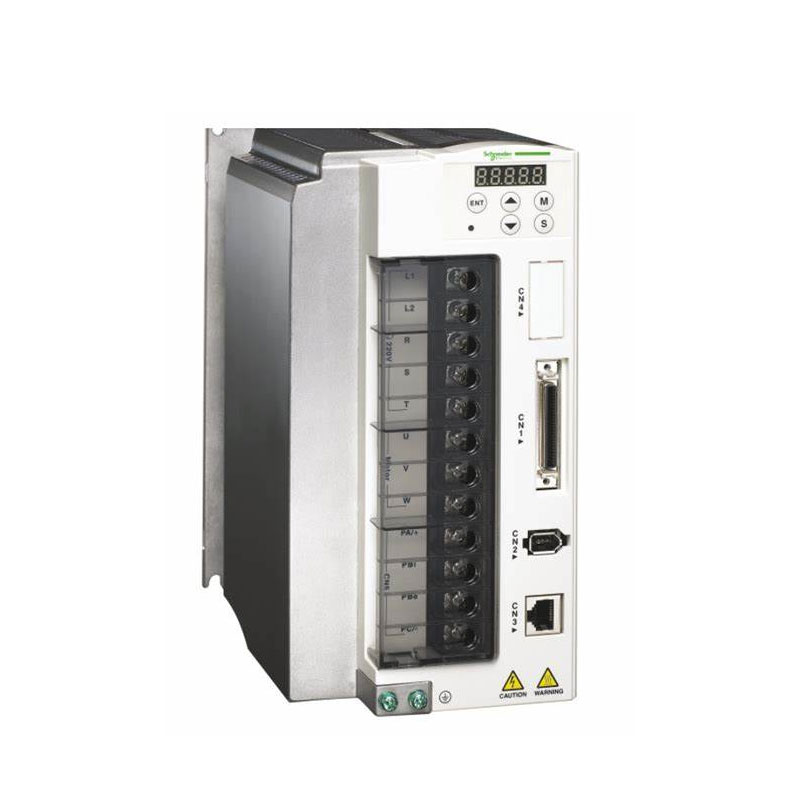

The Schneider LXM23DU20M3X continues the metal body design of the Lexium 23 series. The casing is made of sandblasted metal gray, giving a cool touch and a strong industrial feel. The front panel layout is quite classic, featuring five LED displays. Without the need to connect to a computer, simply viewing the jumping numbers or error codes on the screen allows you to understand its working status. Below are a row of parameter adjustment buttons and status indicator lights, making the operation very clear. The connection terminals are located at the bottom and sides. The power and signal lines are clearly distinguishable, and it's easy to tell which side is the power input and which side is the signal input

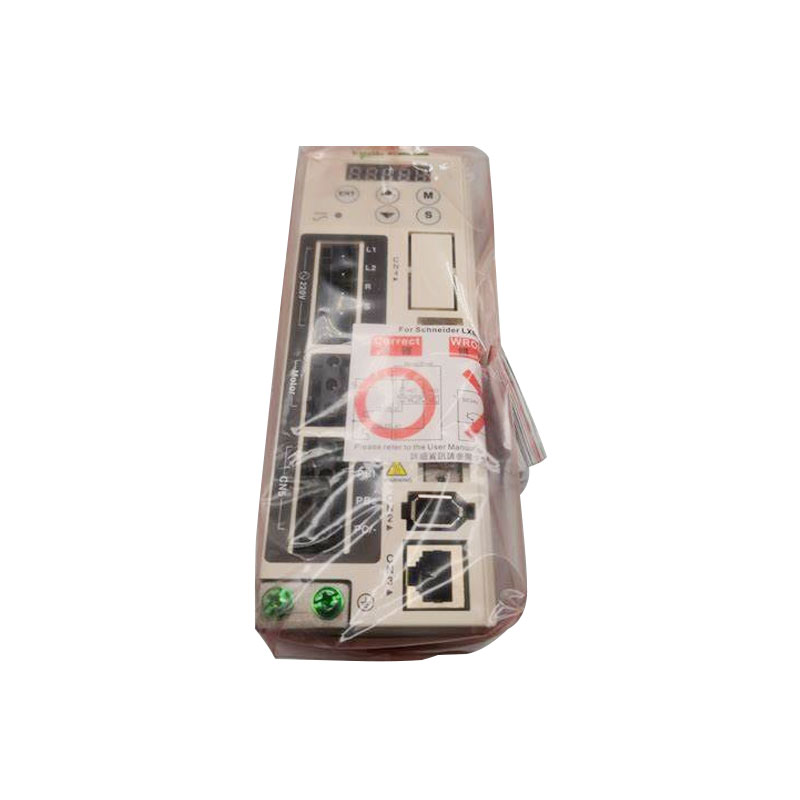

For this type of driver with large heat dissipation fins and precise circuit boards, during transportation, the most worrying issue is violent sorting which might knock off the heat dissipation fins or cause the internal components to loosen due to vibration. When Yueyang Tongtu shipped the products, the packaging was extremely meticulous. We first sealed the driver with thick anti-static bags to prevent moisture and static electricity. Then, we placed it in a specially designed shock-absorbing foam box, suspending the body and securing it with a special bracket, especially paying close attention to protecting the heat dissipation fins. We also wrapped it in a thick five-layer corrugated cardboard box and filled it with cushioning bubble bags. No matter whether you choose sea transportation or air transportation, our multiple layers of protection can ensure that it arrives at your hands intact, without even a scratch.
