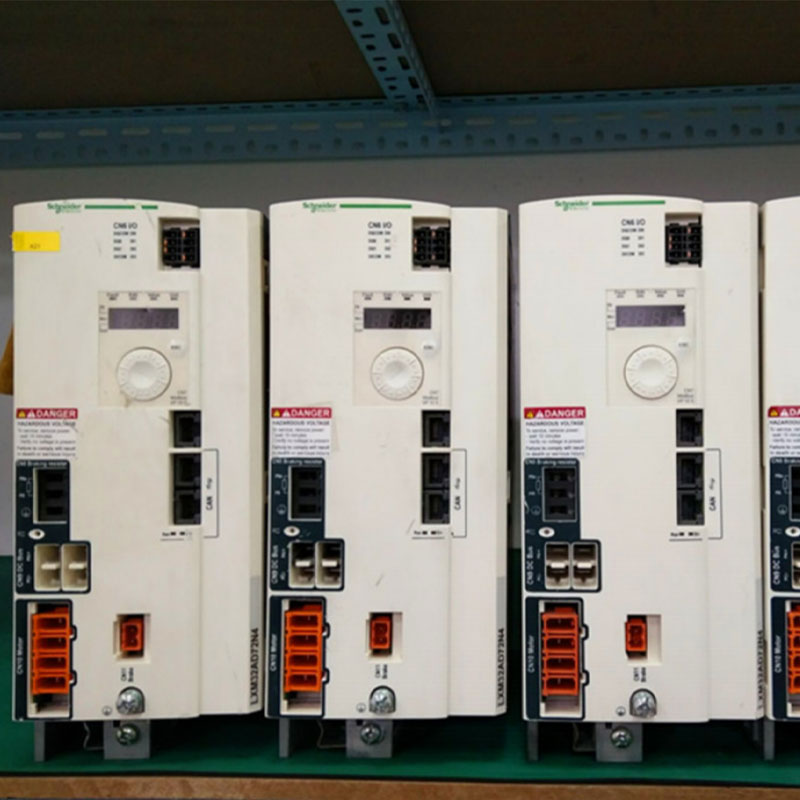

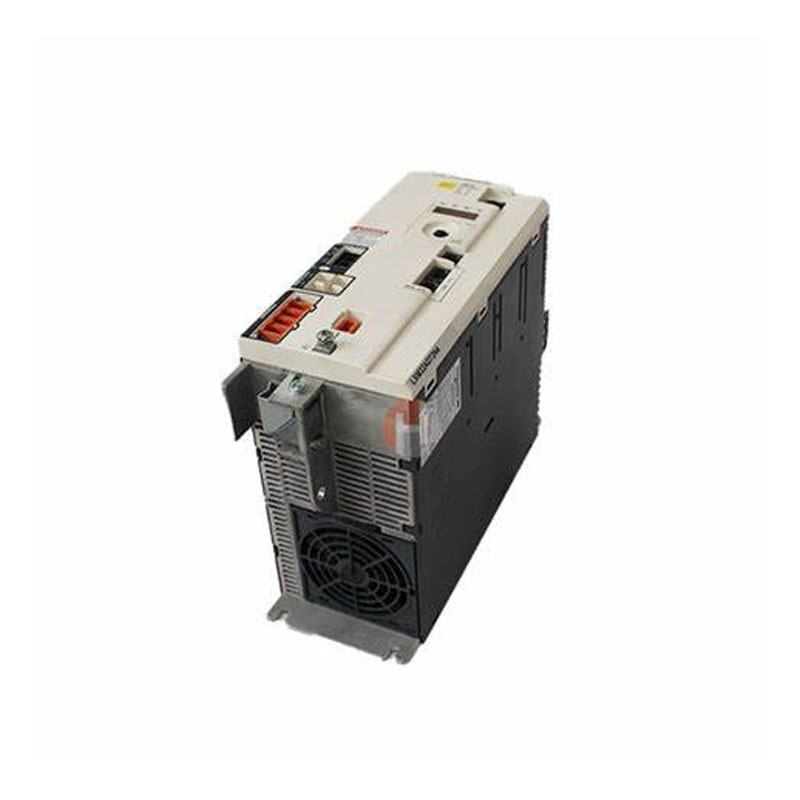

As a professional supplier, we recommend to you this Schneider LXM32AD72N4 high-precision control core specially designed for circuit breakers. This ensures that your critical equipment has precise and reliable protection logic, completely eliminating power outage incidents caused by protection failure.
The Schneider LXM32AD72N4 is equipped with a powerful motion control engine, supporting a wide range of functions such as electronic gears, electronic cams, and internal positioning. Combined with extremely short communication cycles and microsecond-level current loop response times, it fully supports direct drive technology, enabling direct connection to direct drive motors (DDM) and linear motors, further meeting the extreme transmission accuracy requirements of high-end applications.
The main tasks of daily maintenance for Schneider LXM32AD72N4 include dust prevention, moisture protection, and heat dissipation guarantee. Due to the cold plate heat dissipation design, it is necessary to regularly inspect and clean the contact state between the aluminum base plate at the bottom of the drive and the installation surface, monitor the operating condition of the external heat dissipation system, check the connection reliability of the external braking resistors and whether there are any abnormal overheating marks on the surface, and use SoMove software to regularly read the running temperature of the drive, historical alarm records, and motor load rate for preventive analysis. At the same time, regularly upload the key parameters, communication configuration, and internal cam tables and other data in the drive to the computer for archiving, fundamentally reducing the cost of replacement.
My PLC is from Siemens/Rockwell (AB). Can this driver be directly used with it?
OK. The Schneider LXM32AD72N4 model has a "D" suffix. In the SoMove software, simply switch the driver protocol to PROFINET (for Siemens) or EtherNet/IP (for ABB), and it can communicate directly with the PLC without the need to replace the hardware.
Do you support absolute value encoders?
Yes, we do. It can perfectly match Schneider's high-resolution absolute value encoders (single circle/multi circle), and there is no need to re-find the origin after power loss.
Does the drive come with built-in braking resistors?
No. For 7.5kW level drives, when the motor frequently decelerates or moves downward along the vertical axis, the regenerated energy is significant and the built-in resistors cannot handle it. Users must connect a braking resistor that meets the power and resistance requirements externally at the TB1 terminal of the drive.
Is it necessary to write the gear ratio and cam curve in the PLC?
There is no need to consume PLC resources. The LXM32AD72N4 has a powerful motion control engine built-in. The electronic gear, electronic cam, and internal positioning functions can all be directly executed within the driver. The PLC only needs to send the start/stop instructions.
