Allen Bradley 1756-M02AE

As a professional supplier, Tongtu recommends the Allen Bradley 1756-M02AE dual-axis analog servo motion control module to customers. This module outputs analog signals, which are continuous and adjustable voltage or current commands, specifically used to provide speed or torque commands to the driver. It is not only an instruction device but also a monitor, capable of receiving feedback signals from the motor encoder to form closed-loop control.

Send Inquiry

Product Description

The Allen Bradley 1756-M02AE is a dual-axis analog servo control module. You can purchase the products in stock through the same channel. It can be directly inserted into the PLC backplane, read the logic program in real time, and send microvolt-level analog instructions to the servo driver to make your motion control system both precise and flexible, and completely eliminate processing errors caused by control signal jitter.

Characteristics

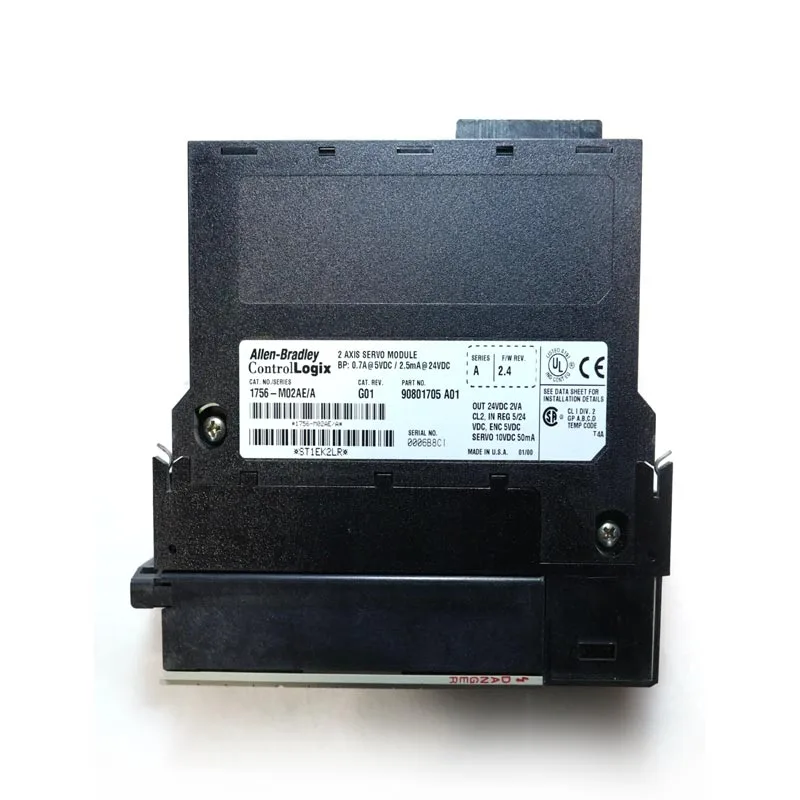

The Allen Bradley 1756-M02AE is a standard ControlLogix module. It features the classic black engineering plastic casing design of Rockwell, presenting a timeless appearance. On the front, there is a row of green terminal connectors, along with numerous status indicator lights on the top of the module. Since it is a dual-axis module, the indicator lights are divided into two groups, respectively showing the operating status (running, stopped, or having an error) of the two channels. Its terminal interface design is compact and orderly, facilitating the connection of multiple feedback lines and analog output lines.

Structure

The Allen Bradley 1756-M02AE uses a high-speed digital signal processor (DSP) and high-precision digital-to-analog conversion circuits. In simple terms, it can independently complete the complex calculations of the position loop, speed loop and current loop without occupying the resources of the main CPU. It integrates a high-resolution encoder feedback interface, which can receive feedback signals from the servo motor and form closed-loop control. Its analog output circuit undergoes special shielding treatment, which can effectively resist external electromagnetic interference, ensuring that the ±10V signal ripple is minimal, which guarantees the real-time performance of the control instructions and also ensures the purity of the analog signal during long-distance transmission..

How to maintain

This Allen Bradley 1756-M02AE module is very easy to maintain. Since it is mainly an electronic circuit, protection against dust and moisture is the top priority. During routine inspections, check if the terminal connections are loose, especially the encoder feedback lines. If the contact is poor, the motor will run erratically. The cooling fan in the cabinet should be checked regularly, don't let the module overheat. As long as the ambient temperature is suitable and the voltage is stable.
