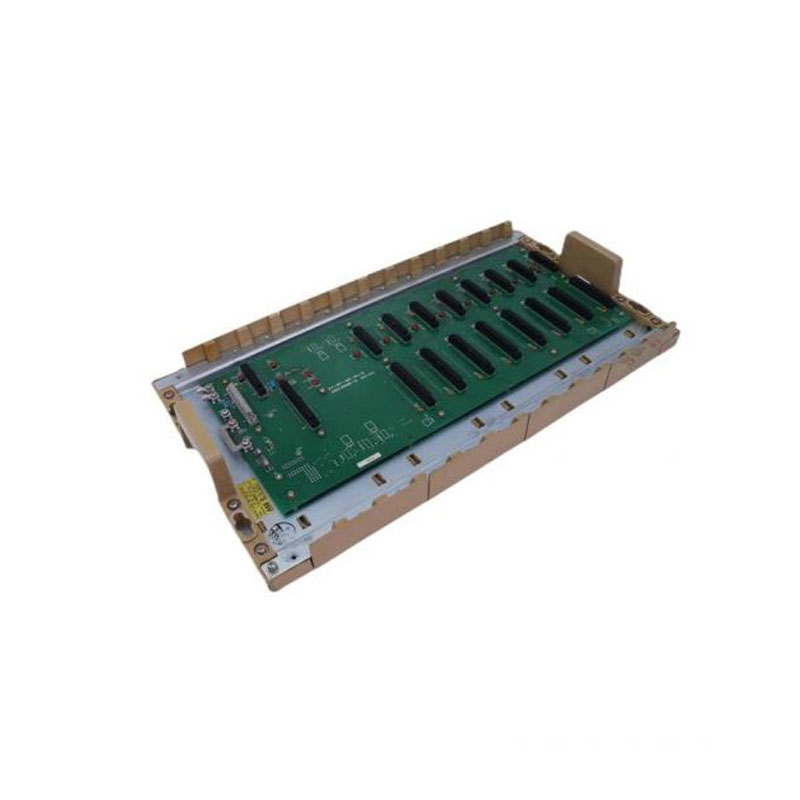

ABB 07BT62R1

As a professional supplier of high-quality ABB 07BT62R1, this product is the actual brainboard card in the entire control station that is responsible for calculating logic and storing programs. It needs to handle the interlocking relationships of hundreds of valves and pumps on-site, and also needs to keep in communication with the upper computer. We recommend this high-quality product, which has passed memory full read/write testing and bottom board bus handshake verification, to everyone. The purpose is to enable you to obtain a hardware base that is extremely clean and an absolutely stable computing state when maintaining those aging industrial systems, so as to further extend the operational life of the old systems by several years.

Structure

The core of this ABB 07BT62R1 is a central processing unit with a ceramic package. Although this packaging method may seem old-fashioned, it is extremely resistant to high temperatures and will never suffer from soldering failures like the current plastic packaging does due to long-term heat generation. Surrounding the processor is a RAM storage area with battery backup and a ROM area for the firmware. Its power supply is very elaborate, with large-capacity tantalum capacitors and voltage regulators all over the board, ensuring that even a slight fluctuation in the direct current power supply at the site will not cause any voltage fluctuations when delivered to the processor core. In its communication interface circuit, extremely high-specification bus drivers are used, which guarantees that when sending a large amount of logical data to the chassis backplane, the signal edges are extremely sharp and clean, without generating glitches that could interfere with other modules.

Parameters

How to maintain

This ABB 07BT62R1 module serves as the brain of the old system. Generally, no special maintenance is required for it. However, there are a few rules that must be followed. First, the small button backup battery on the side of the module needs to be replaced every three to five years. Don't wait until it runs out of power before replacing it. If the battery runs out and causes the internal program to be lost, reinstalling the code for the old system becomes extremely troublesome. Secondly, when inserting or removing this board, make sure to disconnect the power supply of the chassis. Inserting or removing such old high-voltage-driven boards while powered on is extremely likely to cause black holes in the bottom slot of the board. Additionally, if the environment of the cabinet is dusty, regularly shut down the system and use a clean brush to clean the dust on the top of the large capacitors on the board to prevent short circuits caused by moisture absorption of the dust.
