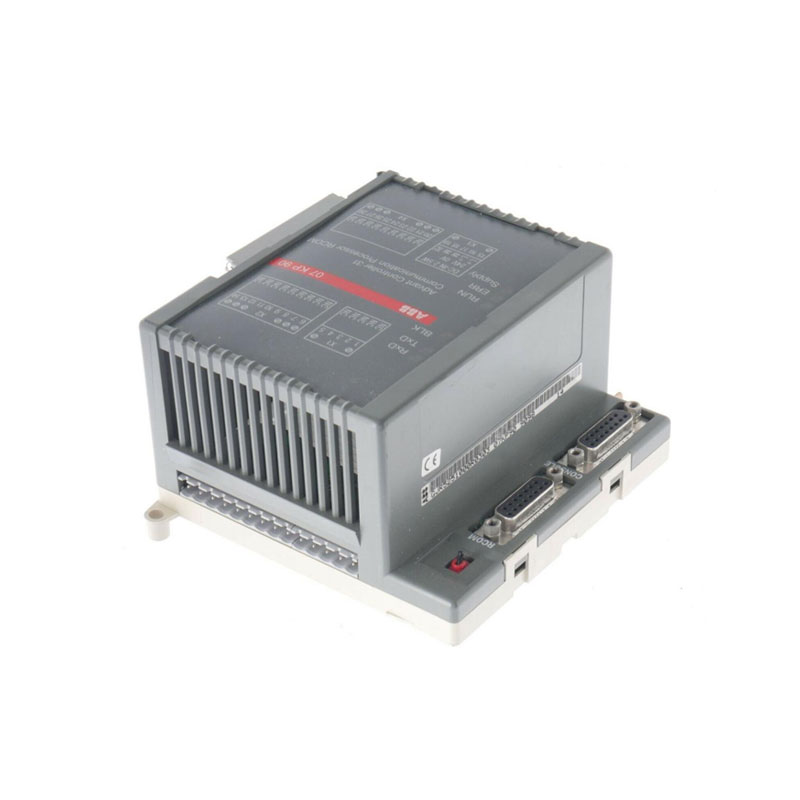

Today, we present to you this high-quality ABB 07KP90 product. This device is placed next to the main control rack and is specifically responsible for converting the control instructions from the main controller into bus signals and sending them out. At the same time, it also sorts out the massive status data transmitted from the site and delivers it to the liaison officer of the main CPU. After the underlying data link capture packet verification, a long time high and low temperature copy machine test recommended to you, is to let you in the investigation of those inexplicable bus communication paralysis, can get a bottom handshake extremely stable, the hardware base extremely clean bridge module, the old system data transmission channel completely open. If you need it, please feel free to come and purchase at any time.
This ABB 07KP90 device is mainly applied to large-scale process control projects that were put into operation between the late 20th century and the early 21st century, based on the ABB Advant OCS architecture. Typical application scenarios include the boiler combustion management system (BMS) of large thermal power plants, the control network of feedwater pumps and steam turbines (MEH), as well as the communication expansion of DCS subsystems in early-built constant-pressure distillation or catalytic cracking units of petrochemical enterprises. In these old devices, 07KP90 serves as the core communication hub at the rack level, responsible for aggregating and uploading the data from scattered I/O modules to the upper-level engineer station or operator station.
The core processing unit of this ABB 07KP90 is built around a dedicated communication microprocessor. Its front-end bus driver circuit integrates a high-voltage photonic coupling isolation array, completely isolating the external fieldbus from the internal backplane bus of the DCS at the electrical and physical level. The isolation withstand voltage typically reaches thousands of volts. The module's clock generation circuit employs a temperature-compensated crystal oscillator (TCXO) to suppress the temperature drift of the clock frequency in the industrial wide-temperature environment. In the power supply network layout, the on-board multi-stage low-difference linear voltage regulator (LDO) cooperated with the large capacity tantalum capacitor array to effectively filter the ripple interference from the backplane power supply and ensure the communication chip to operate in a clean power supply environment.
In terms of spare parts quality control, we conduct extremely strict incoming material appearance inspection (IQC) for all ABB 07KP90 items that are received. High magnification microscope was used to check the denseness and wear of the gold coating of the back plate insertion needle to ensure no scratches and no oxidation blackening. We measure the deformation tolerance of the heat dissipation fins on the module shell to ensure a perfect fit with the cabinet rails during installation. We strictly prohibit any repaired boards that have undergone secondary welding, had their chip components replaced, or have obvious repair marks from entering the genuine spare parts supply chain, to ensure that the customers receive modules in their original factory hardware condition.
After the overhaul of the equipment and the restart phase at an overseas large-scale oil refinery, a severe periodic packet loss occurred in the bottom-level communication network of the catalytic cracking unit. This led to the temporary interruption of some critical temperature measurement points on the operator's station. Since the original system had been shut down and regular channels were unavailable for obtaining spare parts, Yueyang Tongtu received a technical request for help. After receiving the technical help from the same way, Yueyan accurately located the performance deterioration of the 07KP90 module hardware transceiver of a slave rack according to the system diagnosis log provided by the customer. We quickly allocated a module that had undergone complete protocol packet capture testing from the inventory and transported it by air to the site. After replacing and reconfiguring the terminal resistor, through protocol analyzer retesting, the bus error rate was reduced to an extremely low level, and the network communication fully returned to normal, ensuring the timely commissioning of the equipment.
