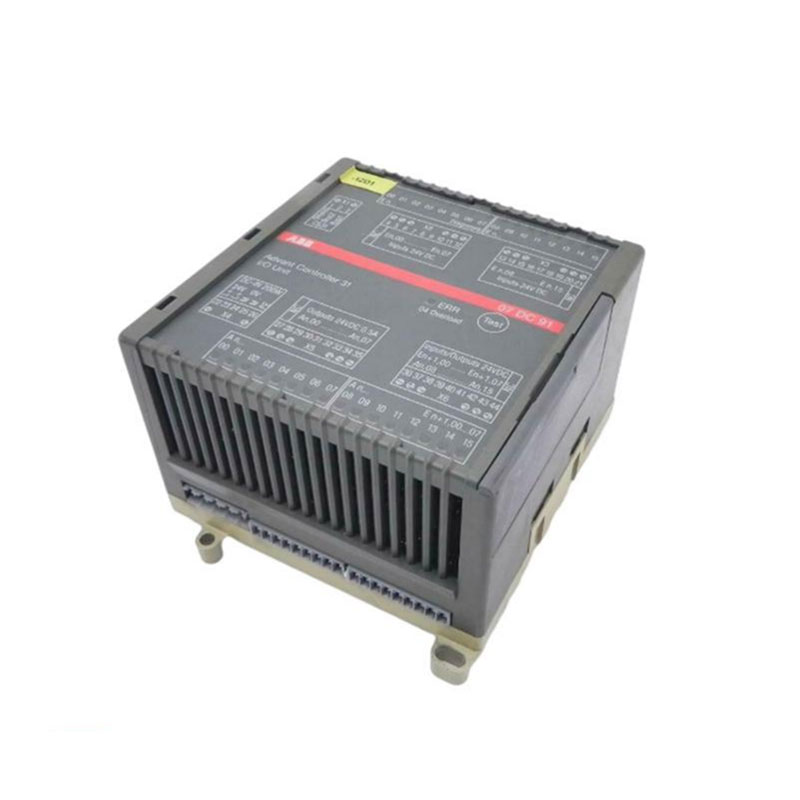

ABB GJR5251400R0202 07DC91

As a partner familiar with ABB hardware, Yueyang Tongtu recommends this ABB GJR5251400R0202 module (commonly known as 07DC91 analog input module), which has undergone full-channel accuracy testing and boasts excellent isolation performance. It can fully understand and convert standard signals such as 4-20mA and 0-10V, converting them into a digital format that the CPU can recognize. Come to our company to purchase, as we have in-stock products and can deliver them at any time.

Structure

The ABB GJR5251400R0202 has a very sensitive external continuous voltage or current signal that is decomposed into very fine digital signals, thereby ensuring measurement accuracy. The most important part is its isolation circuit, which completely isolates the internal circuit from the external and backplane bus side, like building a barrier between the hazardous area and the core circuit, preventing external high voltage leakage and burning out the entire CPU. Its input channel filter circuit has also been meticulously designed to filter out interference signals and retain only the true signals.s.

Characteristics

ABB 07DC91 is an original and genuine product, featuring the typical style of ABB 800xA and Freelance series. Its most notable feature is a row of sturdy terminals on the front, which makes the on-site wiring extremely secure. Unlike some small modules, this module will not loosen even when gently pressed. The panel design of the module is simple, usually with status indicator lights, so it is convenient for checking if it is working properly during the debugging process. Its casing is made of industrial-grade flame-retardant plastic, with an appropriate thickness, a hard feel, and is able to withstand the high temperature and vibration inside the cabinet.

FAQ

What are the main functions?

It is a CPU board or main processing board. It is responsible for executing the control logic written by the user, processing data from I/O modules, and communicating with the upper computer or other controllers.

Which communication interfaces are supported?

Masterbus interface: Used to connect ABB's MasterBus 300 or MasterNet network to achieve redundant communication between controllers.

Serial interface: Usually RS-232, used for local programming, diagnosis or connection to terminals.

Sub-bus interface: Used to connect I/O modules within the rack.

Is redundant configuration supported?

Support. In the Advant Master system, the CPU board of ABB GJR5251400R0202 07DC91 can be configured as a redundant structure to enhance the system's availability. This is a standard configuration in industries such as power generation and chemical engineering where safety is of utmost importance.

What software is needed for programming and configuration of it?

The main software used is ABB's Ampl Control Builder or Composer engineer station software, which supports programming languages such as AF and ST, which are in accordance with IEC 61131-3 standards.
