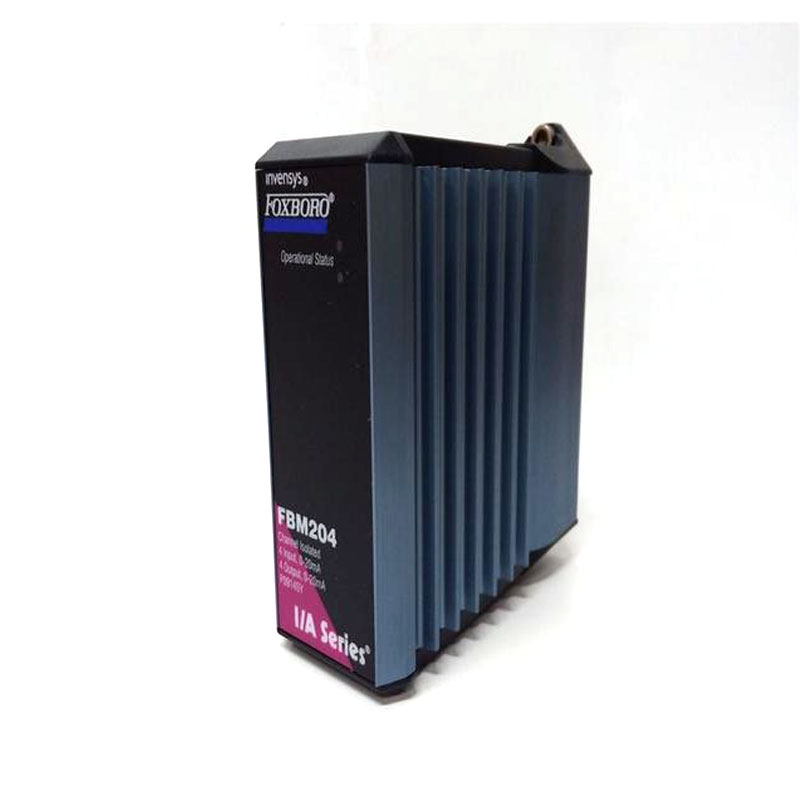

From China, Tongtu Company of Yueyang provides a Foxboro FBM204 P0914SY module component with available stock. This is a fieldbus module specifically designed for processing analog input signals. It converts the 4-20mA current signals sent by field four-wire or two-wire transmitters into standard digital signals that the system controller can recognize. You can purchase this component from our company, and you will receive a replacement part with extremely stable signal processing and intact terminal blocks. This will fundamentally stabilize the measurement data.
The data conversion performance of this Foxboro FBM204 P0914SY module is extremely excellent. It has a high analog-to-digital conversion resolution, which can accurately reflect the tiny changes transmitted by the transmitter onto the operation screen without any step-like numerical jumps. Its temperature drift is well controlled, even if the cabinet temperature reaches 50 degrees due to the summer heat, its zero point and full-scale error can still remain within a very small range, and you don't need to frequently calibrate it. Its common-mode rejection ratio is very high. Even if there is a high interference voltage from the transmitter to the ground in the field, it can still extract the real signal and the values on the screen are stable like a surety god. The crosstalk between channels is also negligible. If one channel has a short circuit or grounding, it will not affect the normal measurement of the adjacent channels.
This Foxboro FBM204 P0914SY module is widely used in various on-site scenarios. The most common application is in the temperature and pressure measurement circuits of the constant pressure and reduction pressure units in large oil refineries, where the signal from the field explosion-proof area is safely introduced into the DCS cabinet. There are also applications such as catalyst flow or liquid level measurement in chemical reaction vessels, where extremely high signal accuracy is required. Any slight drift would lead to an imbalance in the ingredient ratio. Additionally, in the steam-water circulation system of thermal power plants, it is used to connect those high-impedance liquid level transmitters with high insulation requirements. For any scenarios that use the Foxboro I/A Series system and require the high-precision and high-security connection of on-site 4-20mA analog signals to the control system, it is the standard signal channel.
Many overseas customers will send us emails after receiving the goods to share their usage experiences. The users told us that they used to be very afraid of replacing the terminals of these modules because they often encountered refurbished items. Although the appearance looked good, the internal precision resistors had aged, resulting in significant reading errors. After installation, they also had to painstakingly adjust and troubleshoot, which was truly frustrating. However, the components purchased from Yueyang Tongtu could be immediately recognized as being carefully selected. The terminals were brand new, and after plugging them in, the configuration was stable and the accuracy was completely within the normal range. He completely trusted us to handle this kind of basic measurement work.
Model: Foxboro FBM204 P0914SY
Type: Digital expansion module
CPU processing speed: 0.065 microseconds/basic instruction
Memory capacity: 64K steps
Communication interface: Multiple communication ports, support high-speed communication
Positioning function: 3 axes independent 100kHz
High-speed counting function: 6 points simultaneously 100kHz
Working environment temperature: Operate at factory level when the ambient temperature does not exceed 60℃ in G3 environment.
