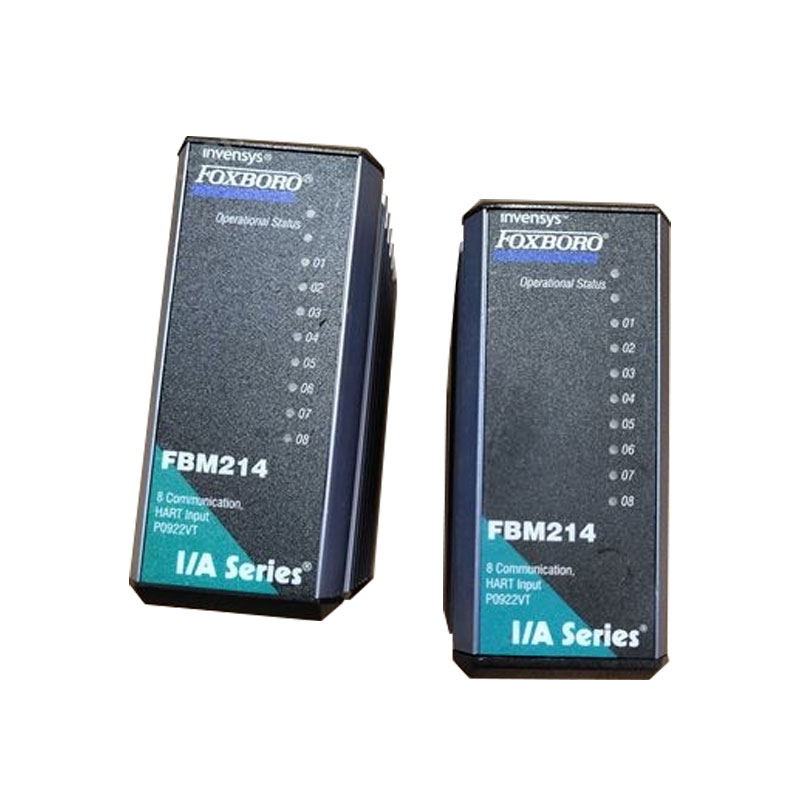

Foxboro FBM214

As a professional supplier, the Foxboro FBM214 module is an isolated analog input module, suitable for scenarios where multiple 4-20mA signals need to be monitored simultaneously. The biggest difference between this module and ordinary modules lies in its high-density channels. One module can replace multiple ordinary modules. If you are interested in our products, please contact Yueyang Tongtu. We offer a wide range of models.

Send Inquiry

Product Description

If the power cord is connected before the signal cable, the wiring process will be both troublesome and prone to errors. The Foxboro FBM214 was specifically designed to solve the problem of integrating power supply and signal acquisition. It not only can accurately read the on-site analog signals, but also can directly provide power for the on-site instruments. As a partner with professional process control experience, Yueyang Tongtu offers a wide range of available models to completely eliminate signal jumps caused by insufficient power supply.

How to maintain

The Foxboro FBM214 module is very convenient to maintain. Keep the control cabinet dry and well-ventilated, and avoid dust accumulation on the terminal connectors. During daily inspections, use a screwdriver to tighten the terminal screws to prevent oxidation and loosening. If you notice unstable readings, you can use a multimeter to measure the terminal voltage to check if it is around the standard 24V, thereby determining whether it is a power distribution issue or an instrument malfunction. For difficult and unclear problems, feel free to contact our technical support team for assistance.

Parameters

Product Model	Foxboro FBM214
Product Type	Isolated Analog Input Module
Input Channels	16 Differential Inputs (High Density)
Input Signal	4-20mA DC (Standard Current Signal)
Resolution	16-bit High Precision
Isolation Characteristics	Channel-to-System Isolation
Applicable Systems	Foxboro I/A Series DCS System
Power Supply Method	Powered via Backplane Bus

Structure

The core structure of this Foxboro FBM214 module integrates the signal conditioning and distribution unit. This is equivalent to condensing the functions of an external distribution cabinet into this small module. Its input circuit adopts a differential amplification design, which can effectively suppress common-mode interference. The most critical is its internal limited current protection circuit, in case of field instrument short circuit, it can automatically limit the current in the safe range, both to protect the module itself, also will not let the whole control cabinet power trip. This structural design not only ensures the measurement accuracy of the signal but also provides a powerful system self-protection capability.

Foxboro FBM214
