HIMA Z7138

As a professional supplier, we have specially prepared a key component for overseas industrial safety system engineers in the HIMA modular control system - the HIMA Z7138 base mounting frame, which is equipped with a CPU or I/O module. This sturdy and highly reliable base mounting frame, with excellent electrical performance, can provide stable electrical connections for your various functional modules during the system operation.

Characteristics

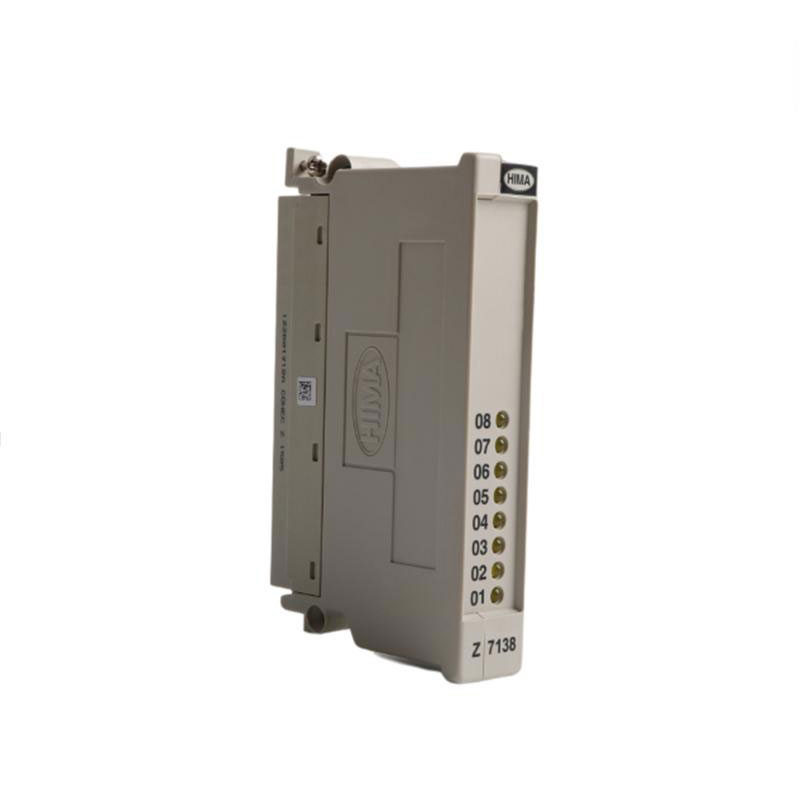

HIMA Z7138 is a base plate mounting frame. Just align it with the rails or mounting holes of the cabinet, and then tighten a few screws to secure it. Another feature is that the guiding design is extremely precise. When inserting or removing modules, even without looking, they can slide along the slot and precisely align, completely avoiding the risk of misalignment or damaging the pins. This is very convenient for personnel who operate on-site with thick gloves.

Parameter

Brand: Z7138

Type: Communication module/control module

Operating voltage: 24Vdc

Communication protocol: Ethernet/IP and PROFINET and other protocols

Communication rate: 100Mbps

Dimensions: 85×35×125mm

Weight: 150g

Operating temperature: -25°C to 70°C

Storage temperature: -40°C to 85°C

How to maintain

The maintenance of this HIMA Z7138 is not difficult. It should be placed in the cabinet at all times. The most important thing is to prevent dust from entering the slots. Don't let conductive dust fall into them, otherwise, over time, there will be poor contact. Also, if you need to remove the module, it is best to cover the dust cover first to prevent oxidation of the slot. If it is not used for a long time, it is recommended to wrap it up and put it in an anti-static bag, and store it in a constant-temperature and dry cabinet. The most important point is that when plugging or unplugging the module, make sure to align it properly before applying force. Don't twist the internal pins, as it will be very troublesome to repair.

Logistics advantages

This kind of base plate, which features numerous precision slots, a back circuit board and metal reinforcement pieces, is particularly prone to damage during transportation. The most worrying issue is that the spring clips inside the slots might be deformed, or the electronic components on the back might be knocked off. When Yueyang Tongtu Company delivers the goods, the packaging is extremely professional. We will first put a custom thick anti-static bag on the base plate to completely prevent static damage. Then, we will wrap it with sufficient bubble pearl cotton to fully enclose the entire machine, especially giving special emphasis on the area with slots for enhanced protection. Finally, it will be placed in a high-strength five-layer cardboard box with specially made foam. No matter whether you choose sea transportation or air transportation, our packaging can ensure that the slots are intact and the copper sheet does not翘 when it reaches you.
