The Allen Bradley 1756-M02AE module is a powerful and reliable motion control solution designed for industrial automation systems that demand precision, scalability, and performance. This article explores its features, applications, configuration, benefits, and real-world use cases, helping engineers, integrators, and buyers understand how to solve common motion control challenges effectively.

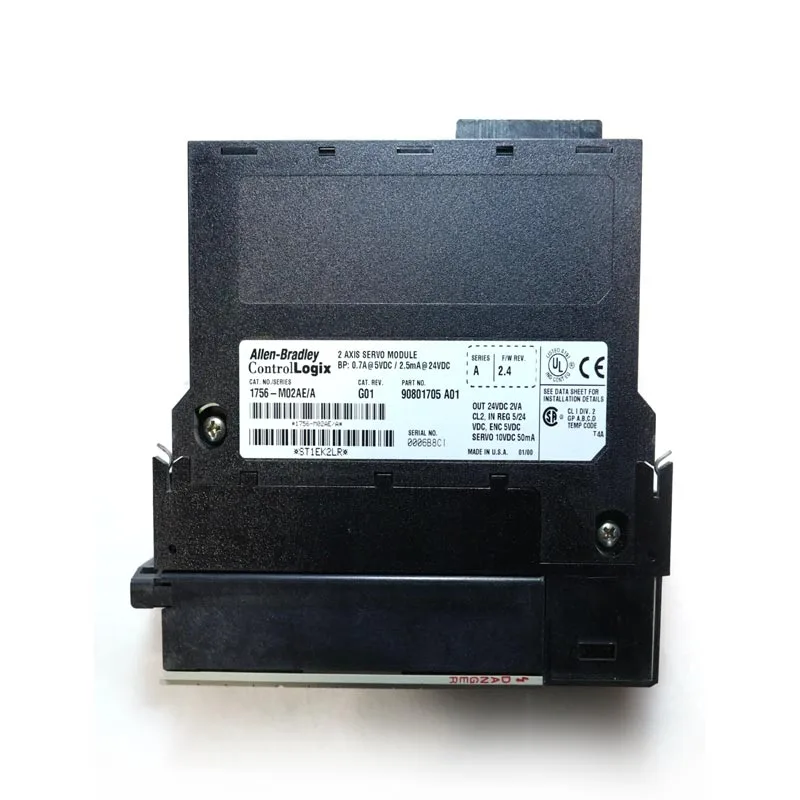

The Allen Bradley 1756-M02AE is a dual-axis analog servo module designed for the ControlLogix platform. It provides precise control of servo motors, making it ideal for high-performance automation tasks such as packaging, material handling, and robotics.
Unlike basic motion modules, this device supports advanced motion profiles, enabling manufacturers to achieve consistent accuracy while maintaining system flexibility.
| Feature | Description |
|---|---|
| Axes Supported | 2 axes (dual-axis control) |
| Communication | ControlLogix backplane |
| Control Type | Analog servo control |
| Feedback Support | Encoder feedback |
| Performance | High-speed, real-time motion execution |
| Integration | Seamless integration with ControlLogix PLCs |
These features make the module particularly suitable for complex motion systems where synchronization and precision are critical.
In these environments, even small errors in motion can lead to product defects or downtime. The 1756-M02AE helps minimize these risks.
Challenge 1: Inconsistent Motion Accuracy
Many systems struggle with maintaining consistent positioning, especially at high speeds. This module offers precise analog control, ensuring stable and repeatable motion.
Challenge 2: Integration Complexity
Integrating motion control with PLC systems can be difficult. The module is designed specifically for ControlLogix, simplifying setup and reducing engineering time.
Challenge 3: System Downtime
Unexpected failures can halt production. The module’s robust design improves system reliability and reduces maintenance frequency.
Challenge 4: Scalability Limitations
As production grows, systems must adapt. This module allows easy expansion within the ControlLogix ecosystem.
Step 1: Hardware Installation
Step 2: Wiring
Step 3: Software Configuration
Step 4: Testing
| Module | Axes | Control Type | Best Use Case |
|---|---|---|---|
| 1756-M02AE | 2 | Analog | Precision servo control |
| 1756-M03SE | 3 | Digital SERCOS | High-end synchronized systems |
| 1756-M08SE | 8 | SERCOS | Large-scale automation |
The 1756-M02AE is ideal for applications that require analog control and moderate axis count without the complexity of SERCOS systems.
For companies looking to upgrade their automation systems, this module offers a balance between performance and cost.
When selecting a motion control module, consider the following factors:
If your system requires precise analog servo control with two axes, the 1756-M02AE is a strong candidate.
Regular Maintenance:
Troubleshooting Common Issues:
Q1: Is the 1756-M02AE compatible with all ControlLogix systems?
Yes, it is designed specifically for ControlLogix platforms, ensuring seamless compatibility.
Q2: Can it control more than two axes?
No, it supports two axes. For more axes, consider higher-capacity modules.
Q3: What type of motors does it support?
It is primarily designed for analog servo motors.
Q4: Is it suitable for high-speed applications?
Yes, it delivers high-speed and precise motion control.
Q5: How can I ensure optimal performance?
Proper installation, calibration, and regular maintenance are key.
The Allen Bradley 1756-M02AE stands out as a reliable and efficient solution for dual-axis motion control in industrial automation. Its precision, ease of integration, and robust performance make it a valuable component for manufacturers aiming to improve productivity and reduce operational risks.
If you are looking for a trusted supplier or need professional guidance, Yueyang Tongtu E-commerce Co., Ltd. offers expert support and high-quality automation components. Contact us today to get tailored solutions that meet your specific industrial needs.
