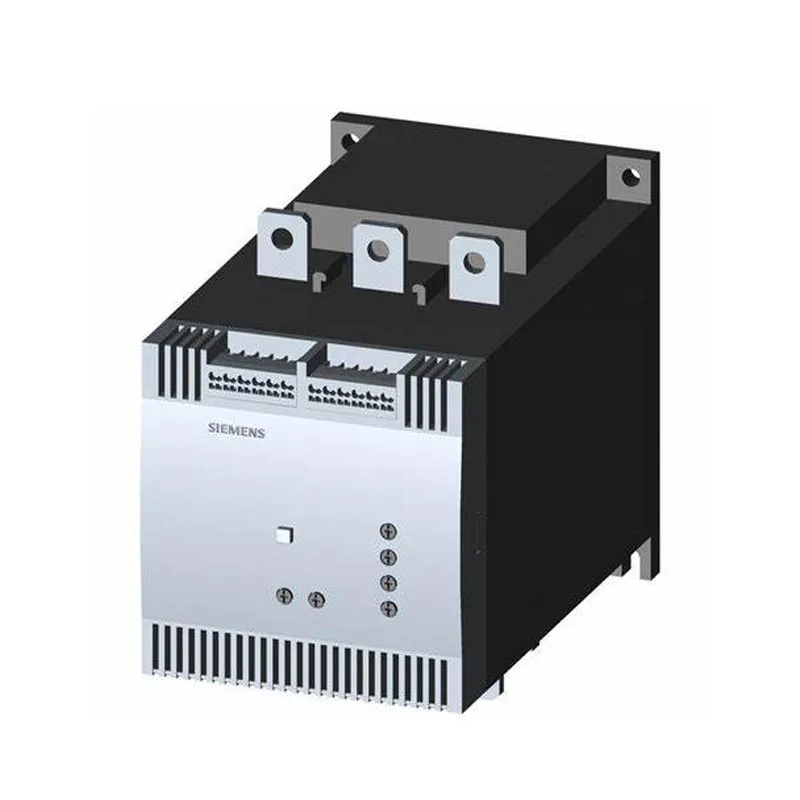

Siemens 3rw4444-6bc44

As a professional supplier, we have specially prepared a key equipment in the field of motor control - Siemens 3RW4444-6BC44 for overseas mining owners, power engineers and heavy machinery maintenance experts. This equipment can ingeniously control the starting voltage and enable the motor to start. We have a wide range of Siemens models in stock and also offer one-stop after-sales service.

Application scenario

This product is used in an extremely wide range of applications. The most common one is the belt conveyor in the mining industry, which is used to prevent the belt from being torn apart during startup. There are also pump stations in large water plants, used to control the start and stop of water pumps and eliminate water hammer. And in the metallurgical industry, there are fans, crushers, compressors, etc. For all those high-power electrical applications where the direct startup current is too large, causing significant impact on the power grid, or where there are high requirements for protection of mechanical transmission components, this Siemens 3rw4444-6bc44 is a standard configuration.

Structure

This Siemens 3rw4444-6bc44 model features a core structure that integrates reverse parallel thyristor power components. In simple terms, there are six sets of controllable electronic switches inside it, and the voltage output to the motor is adjusted by controlling the conduction Angle of these switches, so as to achieve soft start and soft stop. It also integrates the "bypass contact system", which is a clever play, when the motor starts, it will automatically switch the current to the built-in bypass contact, so that the thyristor "off work rest", which not only reduces the heat of the soft starter itself, but also greatly improves the operating efficiency. Its heat dissipation ventilation design is very scientific, and combined with the intelligent fan at the top, it can quickly disperse the heat. This structural design not only ensures precise control during the start-up process but also ensures energy conservation and stability during operation.

Specification
