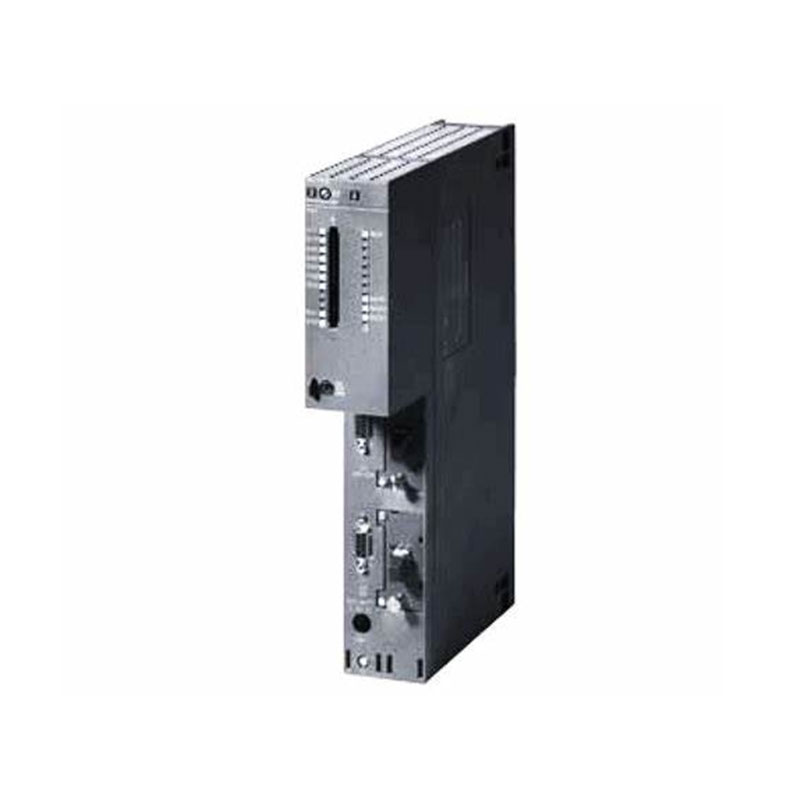

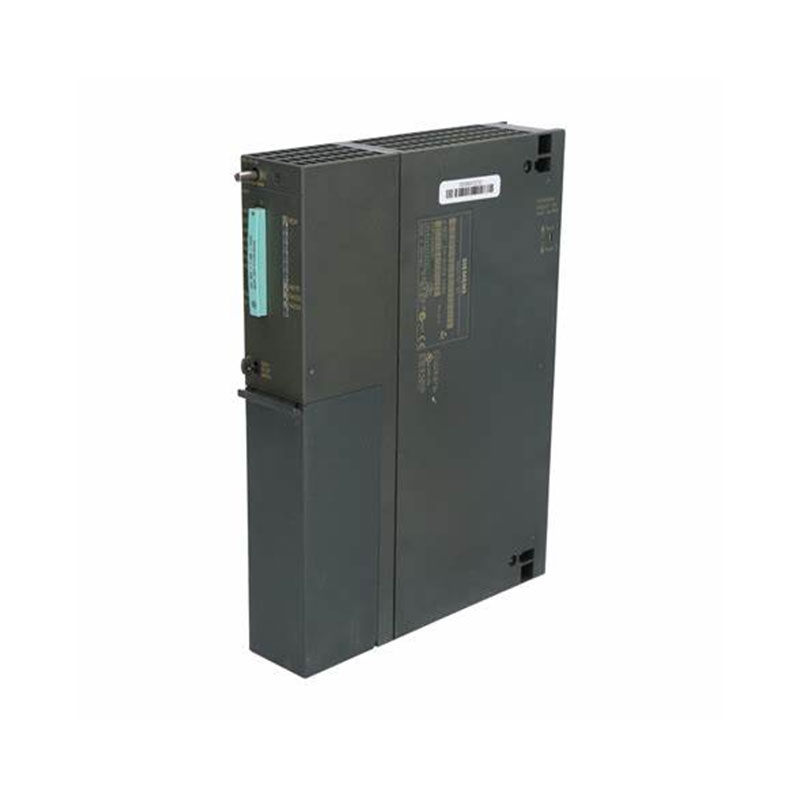

Siemens 6ES7414-4HJ04-0AB0

The Siemens 6ES7414-4HJ04-0AB0 module requires two identical units to be used in pairs and to monitor each other's operating status through high-speed optical fibers. Even if one of the devices fails completely, the other device can take over all the work within milliseconds, and the on-site valves and motors will not experience any abnormalities. Yueyang Tongtu, as a supplier familiar with the core logic of Siemens safety systems, provides all customers with high-quality products. It offers dual guarantees to completely prevent production shutdown accidents caused by single-point failures.

Performance

This Siemens 6ES7414-4HJ04-0AB0 model has a very high clock frequency. It can execute a complex logical instruction in an extremely short time, and is fully capable of handling the intricate interlocking logic in large chemical plants. Its redundant switching performance is the core selling point. In the case of power failure or program running in the main control unit, the spare unit takes over the work for a very short time, and the on-site actuator will not move because of instantaneous power failure, which is the most critical indicator for the safety interlocking system. Its self-diagnosis coverage is extremely high. Any abnormalities in memory, clock, or communication links will immediately trigger an error and initiate a switch. Its anti-electromagnetic interference capability is fully designed in accordance with heavy industry standards and can operate stably even next to frequency converter groups and high-voltage equipment.

Parameters

Product model: Siemens 6ES7414-4HJ04-0AB0

Product type: Redundant Central Processing Unit (CPU)

Applicable series: SIMATIC S7-400H

Working memory: Built-in integrated large-capacity memory

Interface types: MPI/DP interface + DP interface + synchronous optical fiber interface

Synchronization mechanism: Supports event synchronization

Scanning time: Extremely short instruction processing time

Protection level: Industrial environment standard

Product value

Choosing the Siemens 6ES7414-4HJ04-0AB0 is not because of its outstanding computing speed that ranks at the top of the current list. Instead, it is because its stable operation far surpasses everything in certain extremely critical industrial scenarios. It has established an ultimate defense system that includes the CPU itself, power module, baseboard bus, upper-level PROFIBUS/Ethernet communication network, and the bottom-level I/O modules, all of which are 1:1 pure hardware redundant. Even if a severe physical fault occurs, such as a single main communication line breaking or a sudden burnout of a core chip of a CPU in the cabinet, the entire system can still continue to operate with 100% computing power and truly prevent local disasters from becoming actual problems.
