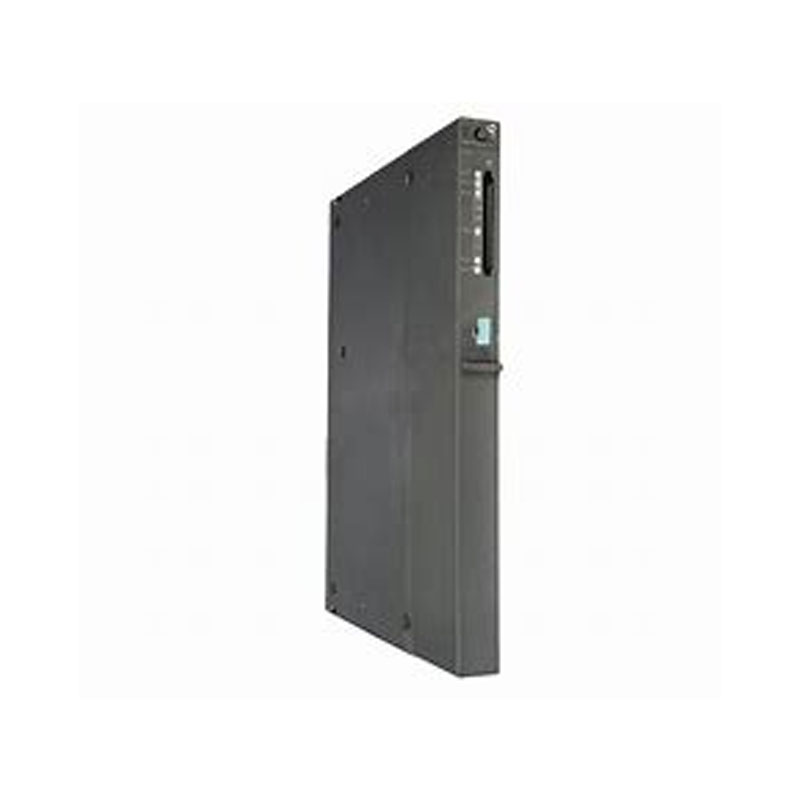

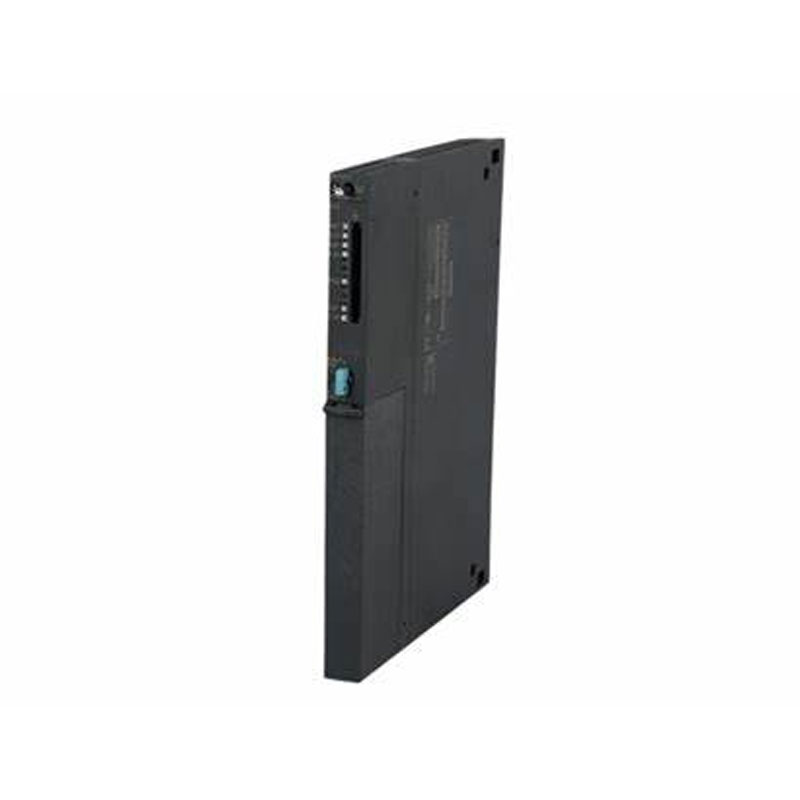

Siemens 6ES7414-2XG03-0AB0

The low-price and high-quality Siemens 6ES7414-2XG03-0AB0 from Yueyang Tongtu is a classic model in the Siemens S7-400 series. It not only provides ample program storage space and extremely fast instruction execution speed, but also has no redundant functions. This truly helps enterprises save on hardware procurement costs.

Structure

The core of this Siemens 6ES7414-2XG03-0AB0 is a dedicated microprocessor from Siemens, surrounded by high-density dynamic storage chips (RAM), all of which are prepared for fast processing of logical operations. The circuit board adopts a multi-layer board design, with the power input part and the signal processing part physically isolated from each other. This can significantly enhance the anti-interference capability. The communication interface part is also independently shielded because there is a DP port that needs to communicate with a large number of frequency converters or intelligent instruments on-site. If no isolation is done, external interference can easily enter the CPU through the network cable, causing the system to crash. The pins connecting the bottom and the back panel are not only for power connection, but also contain high-speed data bus lines. The structural design fully ensures the smooth data throughput.

Characteristics

The Siemens 6ES7414-2XG03-0AB0 is different from some low-end modules that do not even have complete communication ports. This module directly integrates the MPI/DP interface, enabling it to be connected to the programming computer for debugging or directly connected to the distributed I/O station without the need to purchase a separate communication processor. It can not only be installed as a master station on the central rack of S7-400, but also can be easily connected to remote sites such as ET 200M through the corresponding interface module. For factories with relatively dispersed equipment, this can save a significant amount of wiring costs. Its diagnostic function is also very convenient. If the module fails or the line breaks, it can be clearly identified through the software..

Specification

Product model: Siemens 6ES7414-2XG03-0AB0

Dimensions: Standard S7-400 module size

Weight: Approximately 0.6 kilograms

Installation method: Central rack, insert type

Protection level: IP20

Packaging list: CPU module + anti-static bag + cushioning material

Environmental requirements: Operating temperature 0°C to 60°C
